How EMC Absorbers Are Tested and Certified: What the NSA, IEEE, and CISPR Standards Require

A product that fails electromagnetic compatibility testing can mean costly redesigns, retesting fees, and delayed market entry. Every reliable EMC test starts with a validated chamber — and every validated chamber depends on properly certified EMC absorbers. The standards that govern this process aren't interchangeable. Each one targets a specific layer of performance, and understanding how they work together matters for anyone involved in chamber design, compliance testing, or absorber procurement.

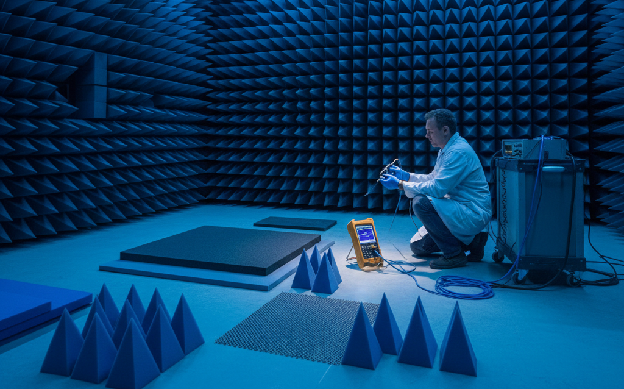

Two Separate Questions That Both Need Answers

Before getting into specific standards, there's an important distinction worth drawing: testing the EMC absorber material is not the same as validating the chamber it's installed in.

Pre-installation testing measures raw reflectivity — how much RF energy a material absorbs versus reflects when tested in isolation. Post-installation validation checks whether the assembled chamber, with all its absorbers in place, actually behaves like open-air free space.

Both matter. And each one has its own set of rules.

The reason no single standard handles everything is practical: frequency range, field type, geometry, and application all influence what "good performance" actually looks like. A material that performs well at 1 GHz can fall short at 10 GHz. That's why the certification process spans multiple overlapping documents.

The Standards That Define "Good Enough" — and What They Each Cover

Here's a brief orientation before the details: four main standards shape how EMC absorbers are tested and certified. Each focuses on a different slice of the problem.

CISPR 16-1-4: Keeping the Whole Chamber Honest

CISPR 16-1-4 is the primary standard for validating Semi-Anechoic Chambers and Fully Anechoic Rooms used in commercial EMC testing, covering 30 MHz to 18 GHz.

Above 1 GHz, it requires measurement of the Site Voltage Standing Wave Ratio (SVSWR). This metric captures whether the EMC chamber absorber installation — combined with the chamber's physical geometry — creates standing wave patterns that would distort test results. The acceptance criterion is clear: SVSWR must not exceed 6 dB across the validated frequency range.

Below 1 GHz, the standard uses Normalized Site Attenuation (NSA) — comparing measured signal attenuation between antennas against theoretical free-space values.

IEEE 1128: Measuring What the Material Actually Does

IEEE Std 1128-1998 focuses specifically on the EMC absorber material itself, covering 30 MHz to 5 GHz. It's a recommended practice for measuring reflectivity under controlled, repeatable conditions.

The standard's primary tool is the NRL Arch Method. Two horn antennas are mounted on an arch, and reflections are first measured off a metal reference plate — a perfect reflector establishing the 0 dB baseline. The absorber sample is then substituted in the same position. The power difference, in decibels, is the material's reflectivity figure.

For high-quality EMC absorber material, reflectivity values typically range from -20 dB to -40 dB, with some specialized products reaching lower figures at specific frequencies. IEEE 1128 is currently being updated to extend its upper limit to 40 GHz, driven by the growing need to characterize materials for 5G and automotive radar applications.

NSA 94-106: The High-Security Tier

NSA 94-106 (formerly NSA 65-6) operates in a different context. Where CISPR and IEEE address commercial EMC work, this standard governs shielded enclosures built for military and sensitive government applications.

Shielding effectiveness requirements here can reach up to 100 dB of attenuation at 10 GHz — far more demanding than typical commercial use cases. EMC absorbers in these environments must contribute to both the reflectivity performance and the overall shielding integrity of the enclosure. Testing uses separate configurations for magnetic fields, electric fields, and plane waves, since attenuation mechanisms differ significantly across field types and frequency ranges.

ANSI C63.4: The North American Complement

ANSI C63.4 is commonly used alongside CISPR 16-1-4 in North American test labs. Its NSA method handles chamber calibration below 1 GHz, and it includes the Time-Domain Reflectivity (TDR) method — an approach that analyzes reflections in the time domain without needing to physically reposition antennas.

The TDR method has become a go-to tool for troubleshooting installed EMC chamber absorber configurations. When an NSA result falls outside acceptable limits, time-domain analysis can identify whether the problem originates from floor tiles, wall panels, or corners — cutting down diagnostic time considerably.

Three Testing Methods Worth Knowing

Different applications call for different measurement approaches. These three are the most commonly referenced across the standards:

• NRL Arch Method — the standard approach for pre-installation reflectivity testing, per IEEE 1128. Uses a metal plate as a reference and measures absorber performance by substitution.

• Waveguide Method — used for very high frequencies, where arch testing becomes impractical due to large sample size requirements. The absorber is placed at the end of a waveguide and tested via impedance mismatch.

• Time-Domain Reflectivity (TDR) — chamber-level troubleshooting and validation, particularly useful for identifying localized reflection problems post-installation.

Each method has trade-offs. The arch method is well-established and reproducible but sensitive to edge diffraction at lower frequencies. The waveguide method handles high-frequency materials well but doesn't replicate real-world installation geometry. TDR is excellent for diagnostics but requires vector network analyzers with appropriate gating capability.

Power Handling — The Part Most Data Sheets Underplay

One certification requirement that rarely gets enough attention is power handling. During immunity testing, chambers are exposed to deliberately high field strengths. If the EMC absorbers can't safely dissipate that energy, the consequences range from performance degradation to outright fire risk.

Power handling testing exposes absorber samples to high-power RF fields while monitoring for temperature rise, material deformation, and combustion. Manufacturers specify maximum continuous and peak power density limits — and those figures need to match the actual test environment. A chamber running automotive immunity tests at 200 V/m faces very different thermal demands than one used only for emissions measurements.

This is a practical concern that certification paperwork sometimes glosses over. Always verify power handling ratings against the specific test application, not just the general product category.

What "Certified" Really Means in Practice

Meeting a standard is not a permanent status. Reflectivity data sheets from manufacturers are based on sample testing under controlled conditions — they don't automatically transfer to every possible installation configuration.

Post-installation validation, required under both CISPR 16-1-4 and ANSI C63.4, is the mechanism that actually certifies a chamber as fit for purpose. That validation must use calibrated, traceable equipment. Accredited labs maintain calibration records for antennas, analyzers, and signal generators to ensure the measurement itself can be trusted.

A certification means the chamber — with its specific selection of EMC absorbers, in that specific configuration — passed the relevant tests at the time of measurement. It says nothing about what happens after physical modifications, after years of compression or aging, or at frequencies outside the validated range.

Revalidation after any significant change is not optional for labs that issue regulatory compliance reports. A material with strong datasheet numbers can still fail chamber validation if positioned incorrectly, paired with incompatible products, or installed in a geometry that generates unexpected resonances.
