The "Ghost in the Machine": Troubleshooting Resonance Issues in Small Shielded Enclosures

A product clears emissions testing. It passes immunity checks. Everything looks solid — until something inside the metal box starts misbehaving at a specific frequency, and nobody can explain why. Sound familiar?

That mystery has a name: cavity resonance. It's one of the most underdiagnosed failure modes in EMC engineering, and it hits small RF shielded enclosures harder than almost any other design category.

When the Shield Becomes the Problem

Metal small RF shielded enclosures are supposed to keep electromagnetic noise in or out. Most of the time, they do exactly that. But once an enclosure's physical dimensions start approaching half-wavelength multiples of an internal noise frequency, the rules change. Standing waves build between opposing walls. The electric field gets stronger, not weaker.

This isn't a fringe scenario. During documented IEC 61000-4-3 radiated RF immunity testing, a 10 V/m external signal produced internal field levels exceeding 60 V/m inside an empty metal enclosure at certain frequencies. The enclosure was amplifying the field — by a factor of six.

Why Size Makes It Worse

Small RF shielded enclosures run into this problem sooner than larger ones. When enclosure dimensions are already close to the wavelengths of the signals being managed, the cutoff threshold — the point where resonance becomes possible — gets crossed at lower, more operationally relevant frequencies.

A shielding that can sit over a PCB module might span just a few centimeters, placing its resonant frequency squarely in the GHz range. That's exactly where 5G radios, Wi-Fi modules, and high-speed digital interfaces operate. The enclosure meant to protect those circuits ends up interacting with them instead.

The dominant resonant mode (known as TE011) kicks in when the largest enclosure dimension hits one-half the wavelength of the signal. Below that cutoff, resonance can't exist. Above it, the box becomes a liability.

Spotting the Ghost Before It Causes a Failure

Catching resonance early takes deliberate testing. Spot-frequency checks often miss it entirely — the resonant peak sits between test points and only shows up during a full sweep. By then, it's usually someone else's deadline.

Several detection approaches work well in practice:

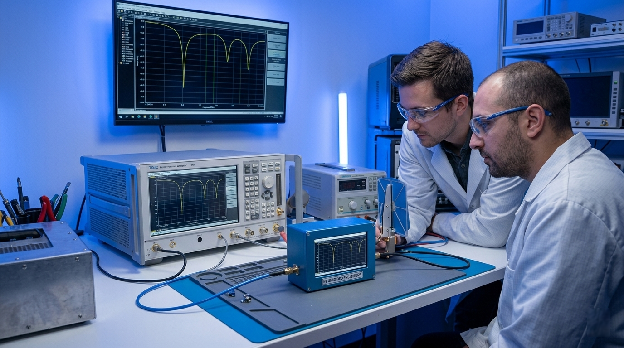

• S21 frequency sweep using a network analyzer — look for sharp, repeatable dips in shielding effectiveness at specific frequencies

• Near-field probing inside the enclosure to locate field intensity peaks (typically near the geometric center for the dominant mode)

• Wall vibration mapping — an older technique where fine particles sprinkled on enclosure surfaces reveal mechanical resonances during a sweep

The Resonators Hidden in Plain Sight

The enclosure itself isn't the only thing resonating. Internal cables routed through small RF shielded enclosures can act as dipole antennas when their length approaches half a wavelength of a problem frequency. A cable that fits neatly inside the box might also be tuned, accidentally, to exactly the wrong frequency.

Shielding cans over PCB modules add another layer. Each one forms a secondary cavity with its own resonant frequency. The same formula used for the main enclosure applies here too — just scale dimensions to millimeters and the result lands in GHz. A broad-spectrum noise problem that resists all the usual fixes sometimes traces back to one small can resonating at precisely the wrong point.

Practical Ways to Kill the Resonance

Once the resonance is confirmed and located, there are several reliable ways to address it. The right choice depends on available space, frequency range, and whether the design can still be modified.

Absorbers and Baffles — Changing the Cavity's Character

EMI-absorbing foam or lossy magnetic material placed inside small RF shielded enclosures reduces the cavity's Q-factor. This doesn't eliminate the resonance — it makes it broader and shallower, spreading the energy over a wider frequency range so the peak intensity drops. Placement matters: absorbers work best positioned near the electric field maximum, which for the dominant mode sits close to the center of the cavity.

Conductive baffles, plates, or internal sub-shields take a different approach. They physically alter the geometry of the cavity, shifting the resonant frequency away from the problem range. The risk is that new metal surfaces can introduce new resonant modes, so simulation before hardware changes is time well spent.

Ferrites, Grounding, and Gaps

Three other factors deserve attention in any resonance troubleshooting workflow:

• Ferrites on internal cables — at high frequencies, ferrites resist rather than block, converting cable-borne energy to heat. This directly addresses the accidental antenna problem.

• Panel bonding quality — poor electrical contact between enclosure panels creates impedance discontinuities and hot spots. Solid, low-impedance bonding across all mating surfaces keeps the field distribution uniform.

• Aperture placement — ventilation holes and connector cutouts near field intensity peaks radiate more efficiently. Moving openings away from those peaks, reducing their size, or using waveguide-below-cutoff honeycomb vents all help contain the problem.

Small RF Shielded Enclosures That Don't Resonate

The cleanest fix is a design that avoids the problem from the start. Keeping the largest enclosure dimension well below half a wavelength at the highest frequency of concern removes the condition for resonance entirely. It takes a few minutes with the resonant frequency formula during early design review — and saves significantly more time than post-failure rework.

Even small changes to the aspect ratio shift resonant frequencies meaningfully. A cube and a flat slab with identical volumes resonate differently. For small shield enclosures constrained by product form factors, that geometric flexibility is often the most practical tool available.

The ghost follows rules. Learn the rules, apply them early, and the enclosure does exactly what it's supposed to do.
