Top 5 RF Shielding Solutions for Protecting Sensitive Electronics

Modern electronics operate in a crowded electromagnetic environment. Wi-Fi, 5G, Bluetooth, radar — these signals share the same airspace and can interfere with each other in ways that cause real damage: corrupted data, degraded performance, and outright device failure. For sensitive components, the answer is RF shielding — the practice of enclosing or coating electronics with conductive materials to block unwanted radiofrequency signals from entering or escaping a device.

The principle is rooted in the Faraday cage effect. When an RF wave hits a conductive surface, most of it reflects off. What gets through is absorbed and converted into heat. The result is measurable signal attenuation — the more effective the shield, the less interference reaches the protected component. Shielding effectiveness is measured in decibels (dB), and the right number depends entirely on what the application demands.

Here are the five most widely used RF shielding solutions — what they are, how they work, and where they make the most sense.

1. Board-Level Shielding — Targeted Protection Right on the PCB

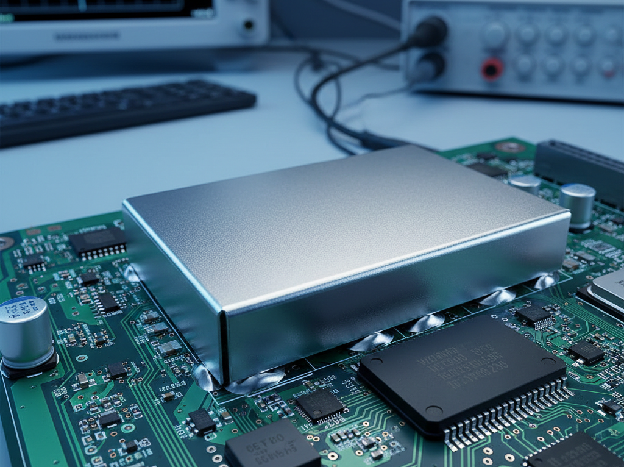

Board-level shielding (BLS) is the most common form of RF shielding found inside everyday devices. These small metal enclosures — often called cans — are soldered directly onto printed circuit boards to isolate specific, interference-prone components from the rest of the circuit.

One Piece or Two?

There are two design types engineers typically choose between:

• One-piece shields — stamped from a single metal sheet and soldered permanently in place; practical for high-volume production

• Two-piece shields — use a soldered base frame with a removable lid, allowing component access during testing or repair without desoldering

Common RF shielding materials for BLS include nickel silver, pre-tin plated steel, and copper. Each offers a different balance of conductivity, solderability, and corrosion resistance. Open a modern smartphone, and you'll almost certainly find several of these cans sitting over the cellular modem, Wi-Fi chip, or power management circuit.

The limitation is the scope. BLS isolates specific zones on a board — it doesn't protect against interference entering through cables, connectors, or other parts of the system.

2. Conductive Elastomer Gaskets — Sealing Every Seam

Every shielded enclosure has joints — between a lid and a base, a door and a frame. Those seams are often where RF shielding fails. RF shielding gaskets made with conductive materials are placed around openings in the enclosure to ensure no signal slips through the cracks.

Why They Work

Conductive elastomer gaskets combine two normally opposing properties: the flexibility of elastomers like silicone or neoprene, and the electrical conductivity of metal fillers — silver, nickel, or aluminum particles. When compressed between two conductive surfaces, they form a continuous electrical bond without welding.

These gaskets appear frequently in military electronics, medical imaging systems, and telecom enclosures — anywhere shielding performance needs to hold up through vibration, temperature changes, and repeated opening and closing. Silver-filled silicone is the high-performance option; nickel-graphite variants are more affordable for most commercial applications.

Installation quality matters as much as material selection. Surface flatness, compression force, and contact finish all affect how well the electrical bond actually forms.

3. Metal Enclosures and Cabinets — Full-System Coverage

When board-level fixes aren't enough, a metal enclosure wraps the entire electronic system in a continuous conductive barrier. For Wi-Fi and IoT device testing, enclosures typically need to deliver a minimum attenuation of 100–110 dB — a level that only well-built metal structures can reliably achieve.

The main material choices each carry different trade-offs:

• Aluminum — lightweight, easy to machine, corrosion-resistant; most common for cost-sensitive applications

• Stainless steel — more durable and better for lower-frequency magnetic shielding

• Copper — highest conductivity and best overall RF performance, but heavier and more expensive

The Walls Aren't the Hard Part

The walls of a metal enclosure are rarely where shielding fails. The problem is everything that passes through them — ventilation slots, display cutouts, cable openings, and connector ports. Unavoidable aspects of enclosure construction can become RF leakage points, including door hinges and edge gaps.

Effective RF shielding solutions address each penetration deliberately: honeycomb vents for airflow, filtered connectors for signal cables, conductive gaskets on every seam. Data center server racks, industrial control panels, and MRI suites all rely on this approach when properly designed and assembled.

4. Conductive Coatings and Paints — Lightweight Shielding for Plastic Housings

Not every device can use a metal enclosure. Handheld electronics, aerospace components, and automotive sensors often need plastic housings for weight or design reasons — but plastic is electromagnetically transparent. Conductive coatings solve this by depositing a thin conductive layer on the inside surface of the housing, converting it into a functional shield.

Application and Performance

These coatings use nickel, copper, or silver particles in a carrier medium, applied by spray or brush. The resulting layer is just a few microns thick but provides meaningful RF shielding across a broad frequency range when grounded correctly. Coatings such as conductive paints provide additional EMI protection, with thicker layers offering greater attenuation.

The key advantage of coatings is geometry. They follow curves, ribs, and complex internal shapes that stamped metal simply can't reach. Silver-based coatings lead in conductivity; nickel-based options cover most commercial needs at a lower cost.

5. RF Shielding Tapes and Foils — Quick, Flexible, and Underused

Tapes and foils fill a genuine gap. Copper and aluminum foil tapes with conductive adhesive backs can be quickly applied to cable bundles, enclosure seams, or RF leak points — making them a standard tool in prototyping labs and repair workflows.

Conductive fabrics extend this further, enabling RF shielding in applications where rigid materials would fail: wearable electronics, flexible cable assemblies, and medical devices that need interference protection alongside mechanical flexibility.

Copper foil outperforms aluminum in raw conductivity. Aluminum is lighter and less expensive. Both need a continuous electrical path to work — lifted edges or poorly bonded seams break the shield immediately. These RF shielding materials work best as targeted supplements within a broader strategy, not standalone solutions when high attenuation is required.

Choosing the Right RF Shielding Solution — What to Know First

Selecting the right solution comes down to frequency range, physical constraints, environmental exposure, and target attenuation. Here's a quick reference for common RF shielding materials:

Design Details That Determine Real Performance

Material selection matters, but implementation quality is equally important. Research from Oxford found that traditional mathematical models for Faraday cages overstated the degree of RF field cancellation — real-world results depend heavily on how well a design is executed, not just what it's made from.

Any gap in a shield acts as a potential leak point. The standard engineering rule: unshielded openings should stay below one-twentieth of the wavelength of the highest target frequency. At 2.4 GHz, gaps over roughly 6 mm become significant leakage paths. Proper grounding ties the whole system together — without a solid low-impedance bond to system ground, even a well-built shield can re-radiate the interference it was designed to block.

Used thoughtfully — and often in combination — these RF shielding solutions form the backbone of reliable, interference-free electronic design across industries from consumer tech and medical devices to aerospace and data infrastructure.
