10 Count RF Absorber 12in, Pyramidal
$1,000.00
You Save: (%)
Availability: In stock

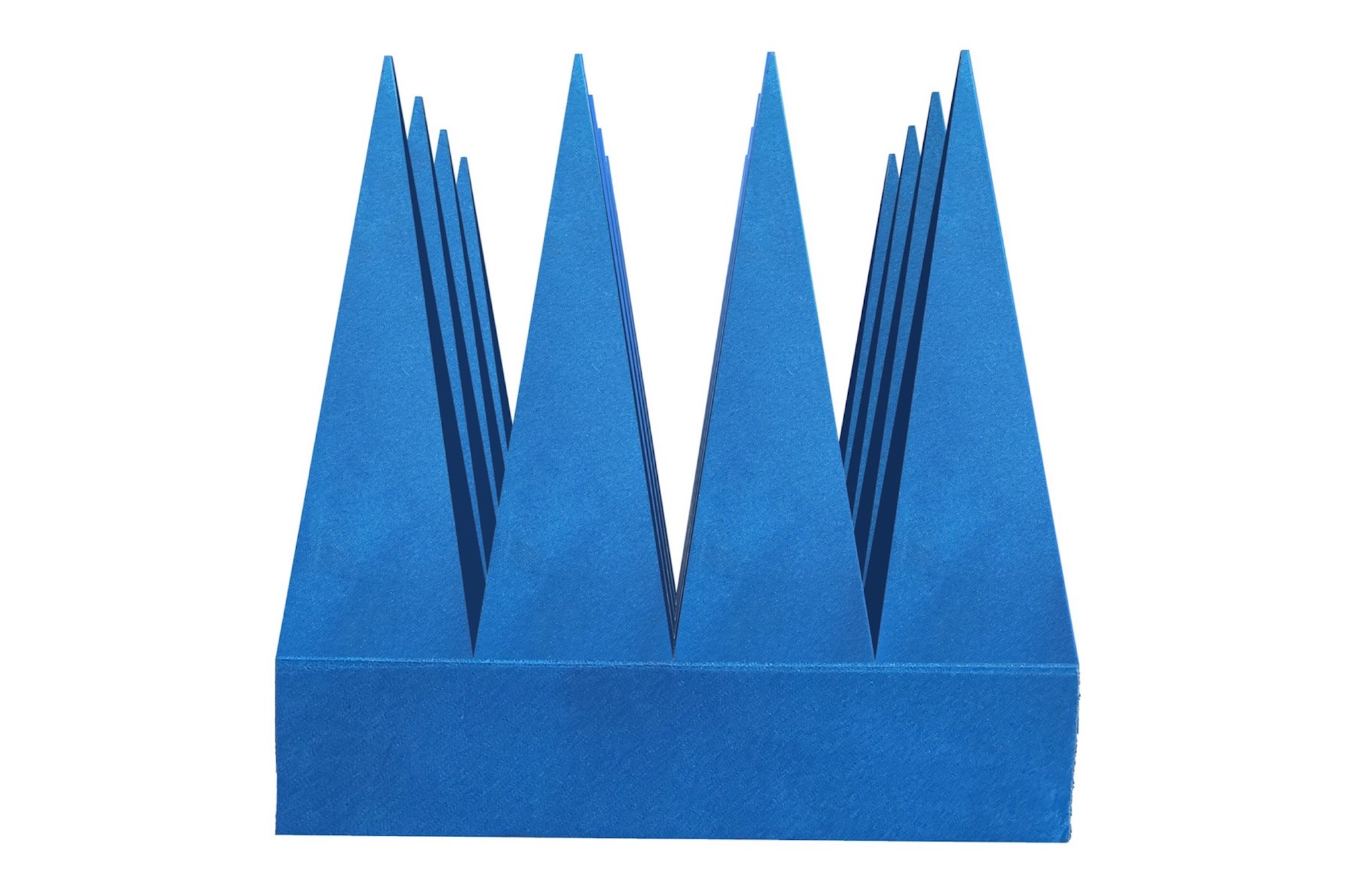

12in Pyramidal Polyurethane Foam Anechoic Chamber Absorber Tile
Composition: carbon and fire retardant chemical loaded polyurethane foam
Working Temperature: -85°F to 176°F (-50°C to +80°C)
Environment: Indoor Use
Fire Retardancy: Certified Independent Lab Test Data to NRL 8093 Tests 1, 2 & 3
Optional Test Data For UL94 and DIN 4102-B2
Power Typical Power Handling: 1kW/m²
*In stock and ready to ship from California
Dimensions
| A | B | C | D | E/F | |
| Total Height | Pyramid Base | Pyramid Height | Base Height | Base Size | #Pyramids |
| 12in/304.8mm |
3.83in/97.5mm |
9.5in/241.30mm |
2.5in/64.70mm |
20x20in/ 500x500mm |
25 per Absorber |
Reflectivity
| Normal frequency (GHz) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 0.1 Ghz | 0.2 Ghz | 0.3 Ghz | 0.5 Ghz | 1 Ghz | 3 Ghz | 5 Ghz | 10 Ghz | 15 Ghz | 40 Ghz | |
| Reflectivity (-dB) at normal incidence | - | - | - | 30 | 35 | 40 | 46 | 55 | 60 | 60 |
