How to Read a Reflectivity Curve on an Absorber Datasheet

A reflectivity curve is simply a graph that shows how much RF energy an absorber panel reflects back at different frequencies, expressed in decibels below what a bare metal plate would reflect. Datasheets are packed with numbers, but this one plot usually decides whether a chamber will pass its next test cycle. Regulatory scrutiny around RF testing has only grown – in 2025 alone, the FCC's Office of Engineering and Technology reviewed roughly 3,369 applications tied to equipment authorization and permissive changes, according to a Federal Register filing published in May 2026. Chambers that can't demonstrate reliable low-reflectivity performance simply don't clear that bar.

This guide breaks the curve down into its components, flags the mistakes that trip up buyers comparing vendors, and connects the reading skill to a real purchasing decision: choosing pyramidal foam absorbers that actually fit a chamber's frequency range and geometry.

What Exactly Does the Reflectivity Curve Measure?

A reflectivity curve compares reflected energy from an absorber panel against reflected energy from a flat metal reference, at matching test conditions. The result is plotted in negative decibels, since absorbers are built to reduce reflection rather than add to it.

Zero dB marks total reflection, the kind a metal sheet produces. Every 10 dB drop below that line represents a tenfold reduction in reflected power, so the gap between -20 dB and -30 dB is far bigger than the numbers alone suggest.

Reading the Axes Correctly

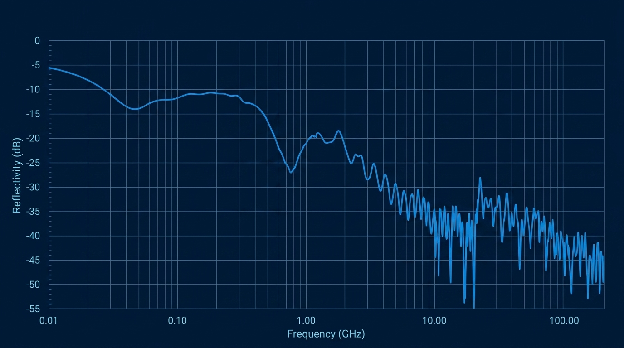

The vertical axis carries reflectivity in negative dB. The horizontal axis lays out frequency, almost always in GHz, spanning the band the absorber was designed to serve.

Put those two together and the result is what's commonly called a “dB vs frequency plot” – the standard format used across nearly every absorber datasheet on the market. Skipping past this plot and going straight to a single "peak absorption" number is a shortcut that hides the details that actually matter for a specific chamber.

The Null Point and What It Signals

The lowest point on the curve is the null, marking the frequency where front-face and back-face reflections cancel out almost entirely. For single-layer pyramidal foam, this cancellation is tuned through base thickness and the material's loss profile.

A narrow, sharp null belongs to an absorber optimized for one band, with strong performance right at that point and a quicker drop-off elsewhere. A wide, shallow trough usually points to a broadband product, holding decent performance across several gigahertz instead of peaking hard at one frequency.

Common Mistakes When Comparing Curves Across Vendors

Two datasheets can look nearly identical at a glance and still represent very different real-world results. Pro tip: before comparing any two reflectivity curve plots side by side, confirm they share the same angle of incidence, panel thickness, and test method – otherwise the comparison is meaningless.

Are the Test Conditions Actually the Same?

A curve measured at normal incidence (0°) will almost always look stronger than the same absorber tested at 45° or 60°, since performance naturally degrades as angle increases. Manufacturers don't always state this clearly on the front page of a datasheet.

A pyramidal absorber rated at -30 dB head-on might land closer to -15 dB at 45 degrees. That gap can be the difference between a chamber that passes certification and one that fails an audit months later.

Does Thickness Explain the Difference?

Thickness changes the shape of the curve substantially. A 24-inch pyramid panel and a 6-inch pyramid panel will produce very different plots, with the thicker material typically holding low-frequency performance further down the band.

A short checklist worth running through before trusting any comparison:

• Confirm the angle of incidence stated on each datasheet matches – normal incidence data cannot be compared directly against oblique-angle data.
• Check panel thickness for both products, since a thicker absorber almost always shifts the null lower in frequency.
• Verify the measurement method (free-space arch, waveguide, or focused-beam), because each carries a different margin of error.

Why Bandwidth Often Matters More Than the Null

The deepest point on a curve gets the most attention, but the bandwidth – the frequency span where performance stays below a chosen threshold – usually matters more for a working chamber. Test ranges rarely operate at one single frequency; they need dependable performance across a band.

What Should a Buyer Check First?

The threshold behind a bandwidth claim needs checking before comparing numbers. A wide bandwidth measured at -10 dB is not directly comparable to a narrower one measured at -20 dB, even if both datasheets print similarly large-looking numbers.

It also helps to confirm the plotted frequency range actually covers the bands a project needs, rather than just the range where the absorber happens to look strongest. Growing spectrum use adds weight to this step – 5G now accounts for about 36 percent of all mobile broadband subscriptions worldwide and covers 55 percent of the global population, according to the ITU's Facts and Figures 2025 report, which means chambers built years ago are increasingly tested across bands they weren't originally specified for.

Matching the Curve to a Real Chamber

Reading a reflectivity curve well means translating a line on a graph into a decision: will this absorber, at this angle and thickness, hold the reflectivity target a specific test actually requires? A chamber built for antenna pattern work in the -25 dB to -30 dB range needs an absorber whose bi-static reflectivity holds at that level across the angles the chamber geometry produces – not only at boresight.

How Does Frequency Range Affect Absorber Choice?

Lower frequencies generally call for thicker pyramidal foam, since absorption depends on how many wavelengths of material an incoming wave passes through before dissipating as heat. A thin panel performing well at 10 GHz will do very little useful work down at 100 MHz, regardless of how attractive its curve looks at the frequency it was built for.

This is exactly why pyramidal foam absorbers remain a practical default for broadband chamber coverage. Their tapered shape gives incoming waves a gradual transition instead of an abrupt boundary, reducing the initial reflection before the wave even reaches the lossy core – which tends to produce the wider, more forgiving curves many chamber projects need.

Choosing the Right Absorber for a Real Project

Getting the curve interpretation right solves half the problem; matching it to the correct thickness, density, and mounting setup solves the rest. dB Absorber works with chamber designers and test labs to select pyramidal foam absorbers suited to a project's actual frequency band, incidence angles, and reflectivity targets, rather than relying on a single headline number pulled from a catalog page. Reach out to discuss chamber specifications and get an absorber recommendation matched against the reflectivity a project genuinely needs.

Frequently Asked Questions

What does a negative dB value on a reflectivity curve actually mean?

A negative dB value shows how much less energy an absorber reflects compared to a bare metal plate at the same frequency. A reading of -20 dB means the absorber is stopping about 99 percent of the incoming energy, while -30 dB pushes that closer to 99.9 percent. The more negative the number, the better the absorption performance at that particular frequency.

Why do two absorbers with similar curves perform differently in the same chamber?

Differences usually trace back to angle of incidence, panel thickness, or the measurement method used to generate each curve. A product tested only at normal incidence can look stronger on paper than one tested across a full range of oblique angles, even when actual performance is comparable. Checking the fine print behind each plot avoids this trap.

Is a narrow, sharp null always better than a broad, shallow one?

Not necessarily – it depends on the application. A sharp null suits a chamber operating at one fixed frequency, while a broad trough suits a chamber that needs consistent performance across a wider band. The right choice comes down to matching curve shape to the actual test requirements, not picking whichever plot has the deepest single point.

How does absorber thickness relate to the frequency range shown on a curve?

Thicker panels generally push the null lower in frequency and extend usable performance further down the band, since low frequencies need more material thickness relative to their wavelength. Thin panels tend to concentrate strong performance at higher frequencies only. This is why frequency range and thickness should always be checked together, not separately.

What's the difference between the -10 dB and -20 dB bandwidth figures on a datasheet?

These figures show the frequency span where an absorber's reflectivity stays below each respective threshold. A -20 dB bandwidth is a stricter, narrower measure than a -10 dB bandwidth, so the two numbers are not interchangeable when comparing products. Confirming which threshold a vendor used prevents an unfair side-by-side comparison.

Why does angle of incidence matter for chamber wall absorbers specifically?

Chamber walls, ceilings, and floors rarely receive energy straight-on; most of it arrives at oblique angles as the antenna under test rotates. An absorber's reflectivity typically weakens as incidence angle increases, so a curve that only reports normal-incidence data doesn't tell the full story for wall treatment. Bi-static reflectivity data across a range of angles gives a far more realistic picture of chamber performance.
