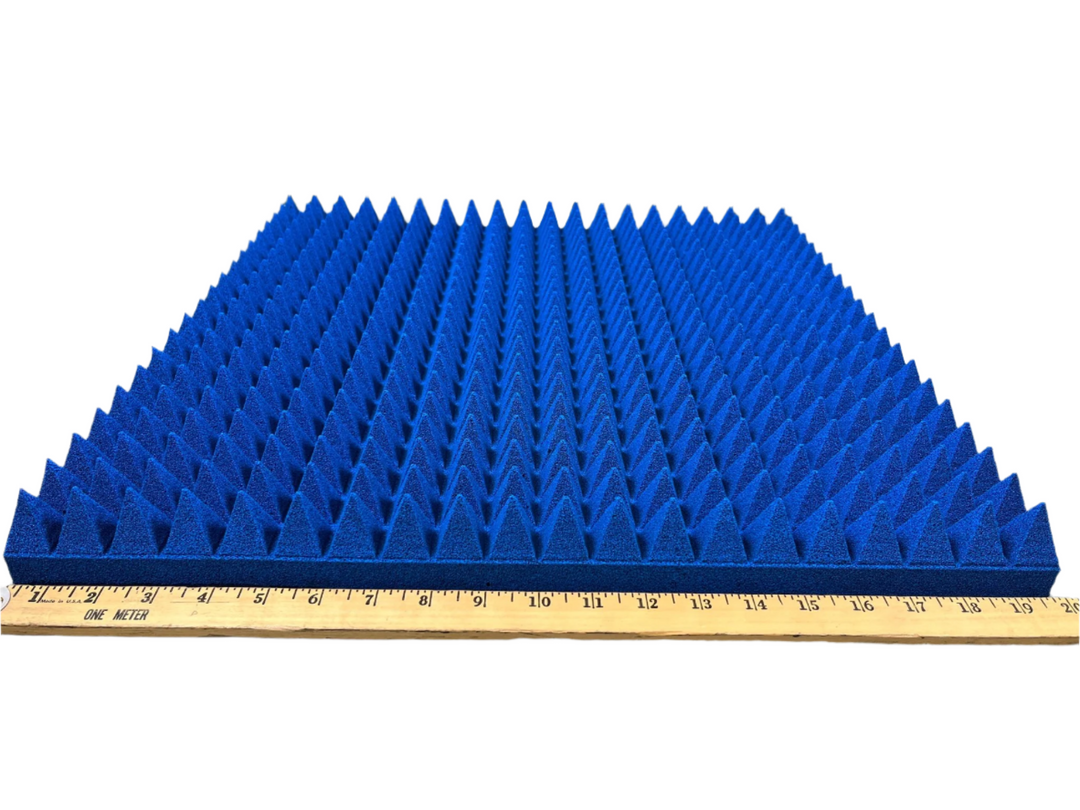

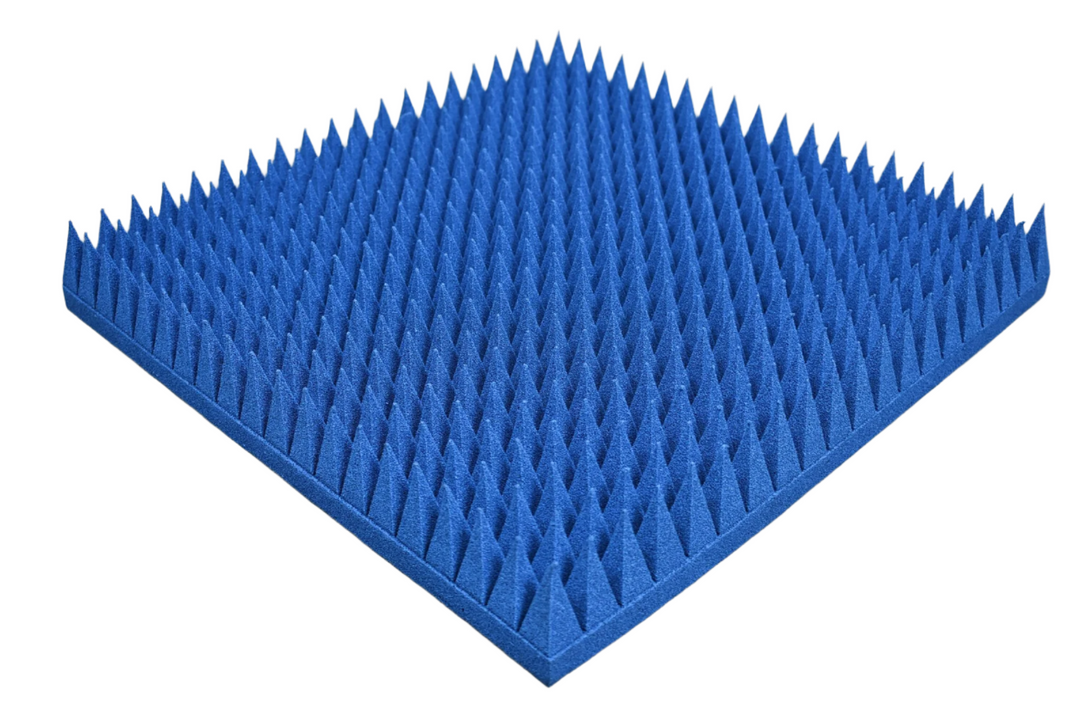

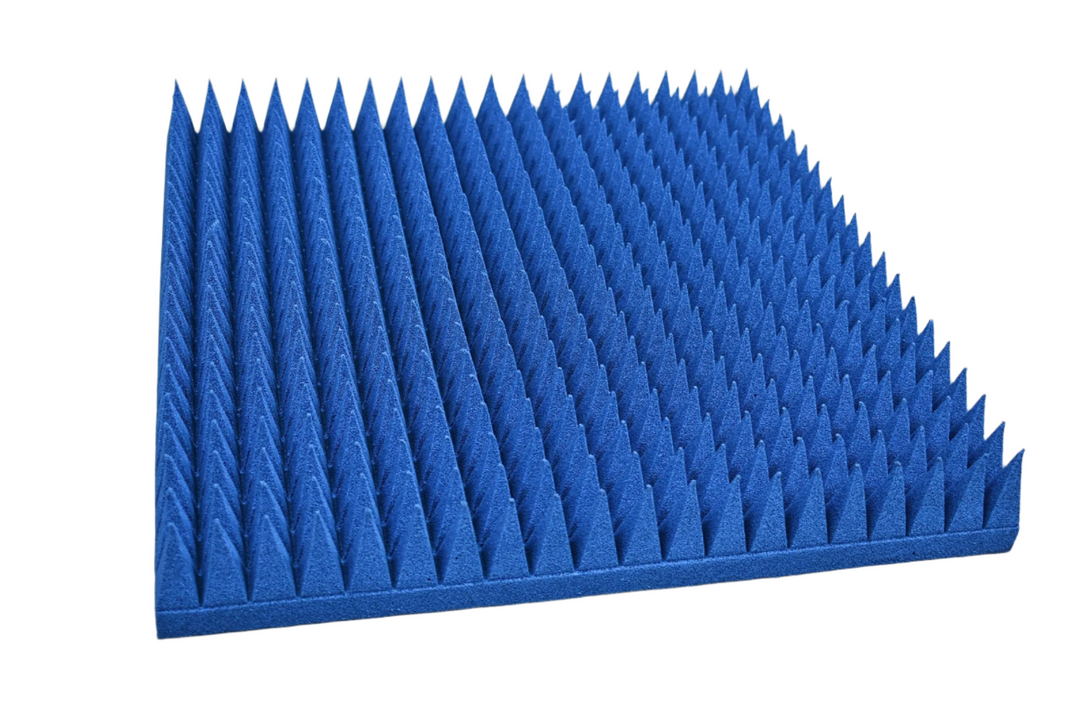

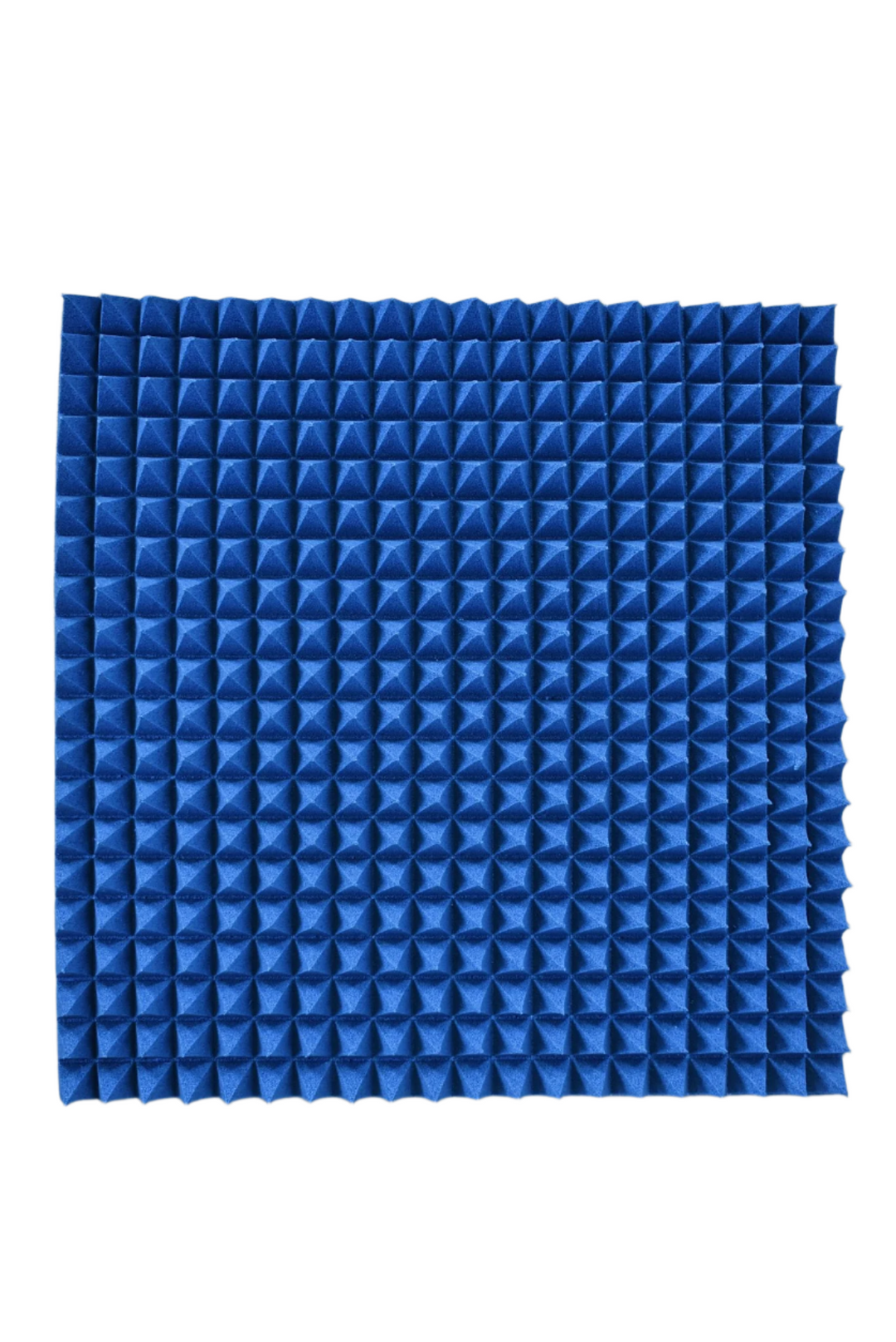

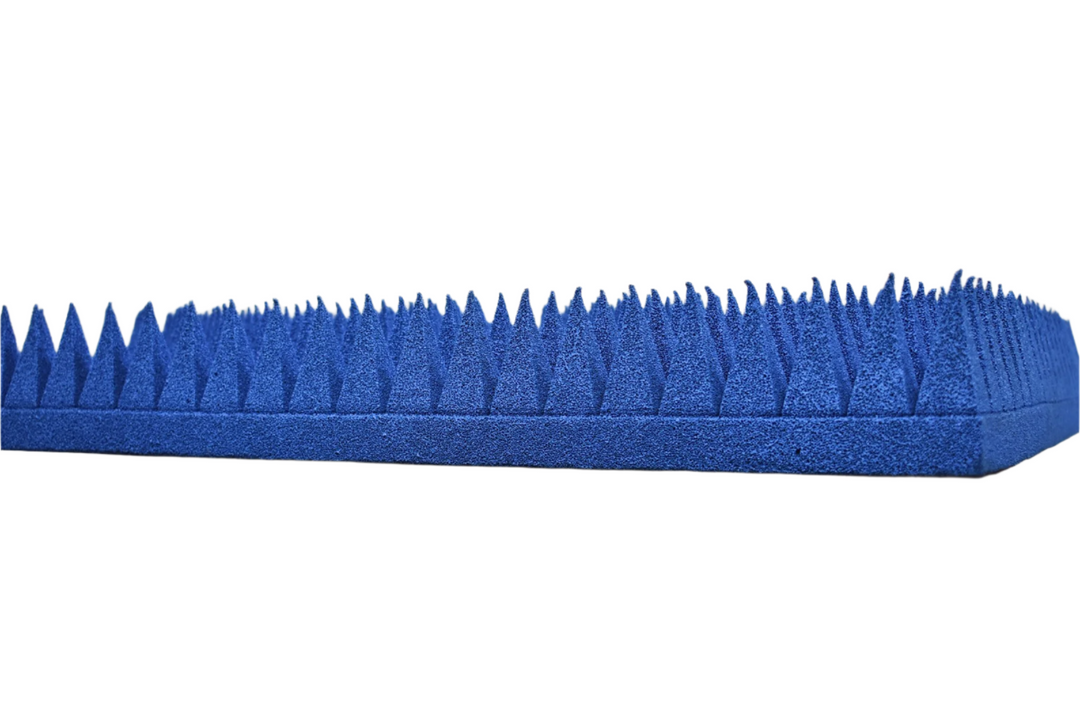

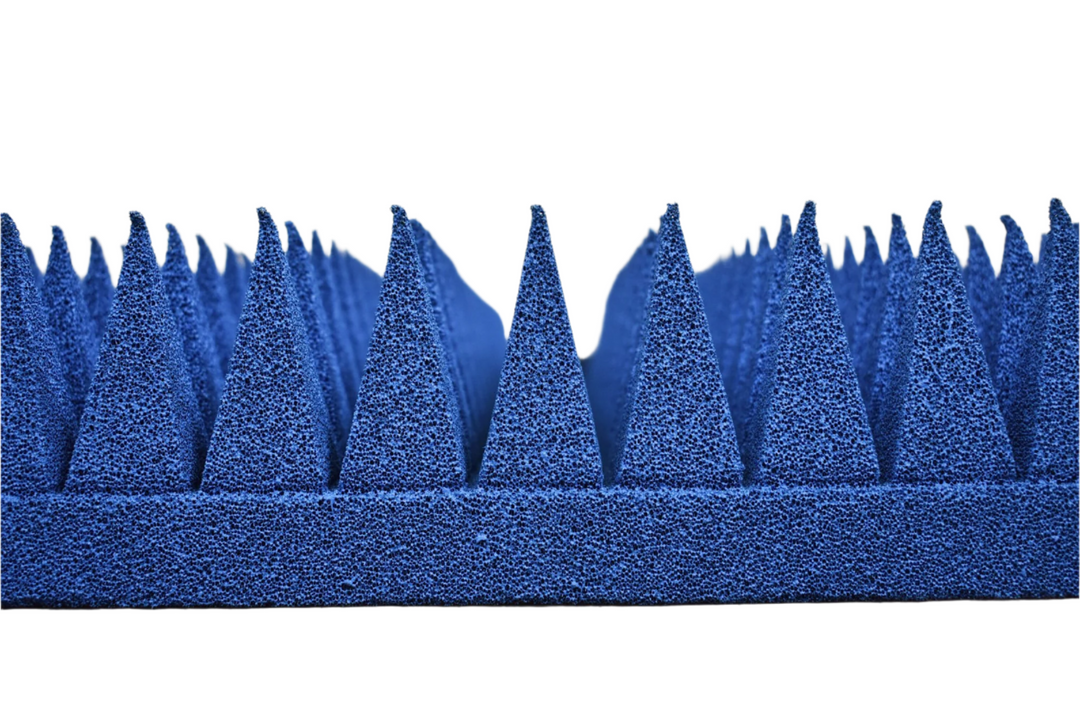

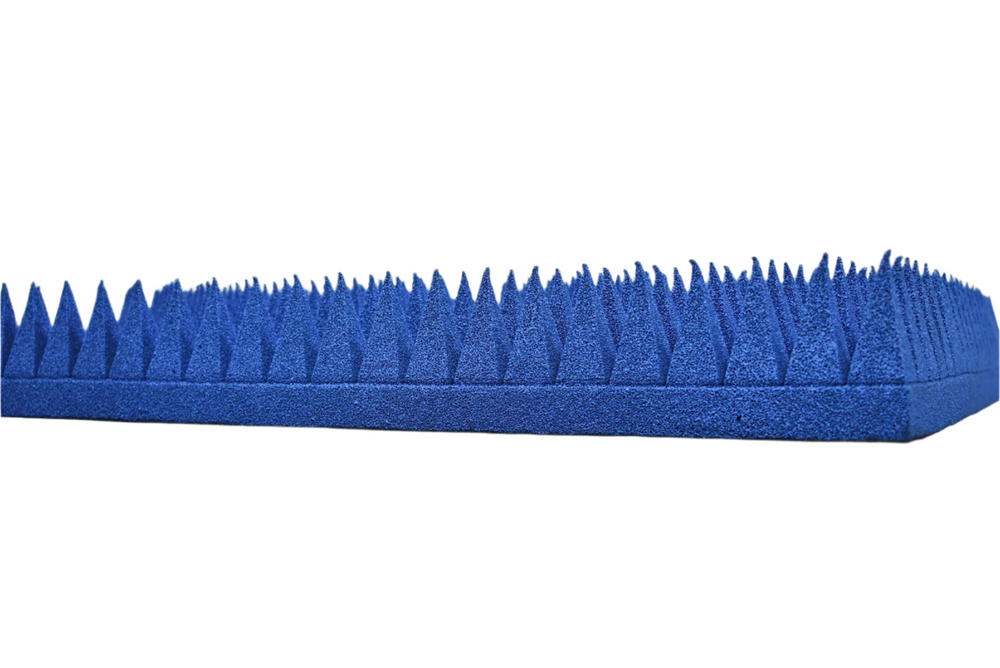

2in Pyramidal Polyurethane Foam Anechoic Chamber Absorber Tile
Composition: carbon and fire retardant chemical loaded polyurethane foam
Working Temperature: -85°F to 176°F (-50°C to +80°C)
Environment: Indoor Use
Fire Retardancy: Certified Independent Lab Test Data to NRL 8093 Tests 1, 2 & 3
Optional Test Data For UL94 and DIN 4102-B2
Power Typical Power Handling: 1kW/m²

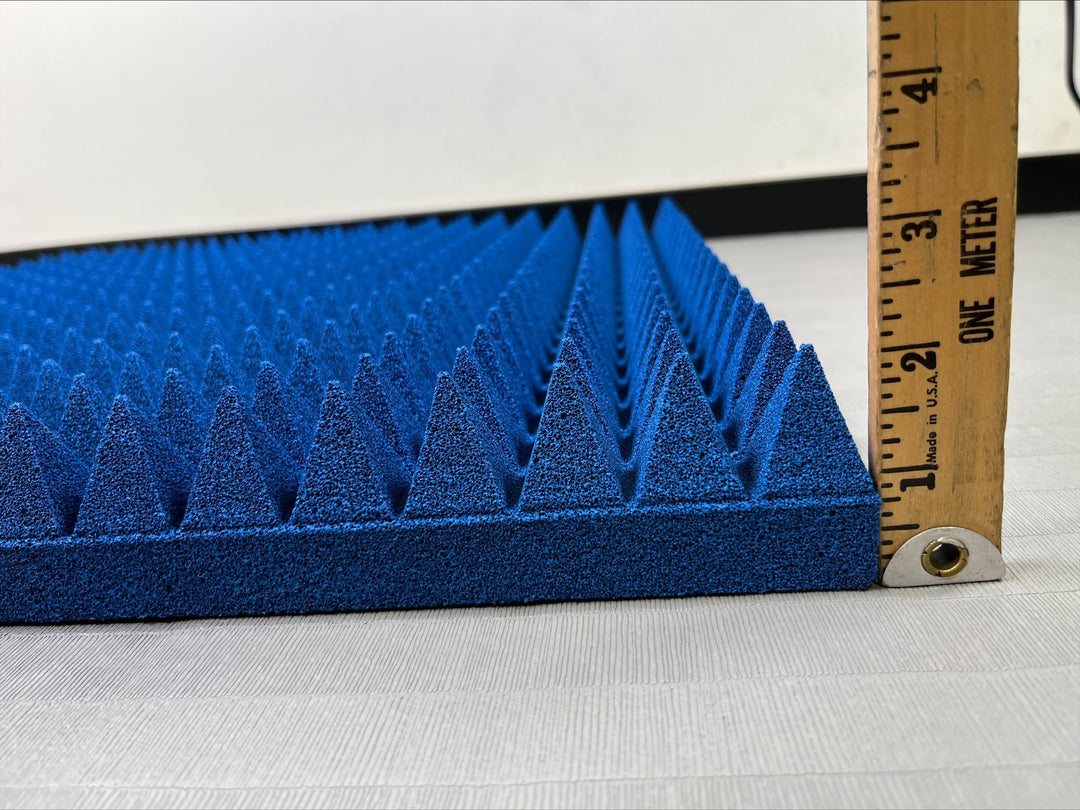

Dimensions
| A | B | C | D | E/F | |
|---|---|---|---|---|---|
| Total Height | Pyramid Base | Pyramid Height | Base Height | Base Size | # Pyramids |
|
2in 50.8mm |
.984in 25mm |
1.15in 29.3mm |
.85in 21.5mm |
20x20in 500x500mm |
400 per Absorber |
Reflectivities
| Reflectivity | Normal frequency (GHz) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 0.1 Ghz | 0.2 Ghz | 0.3 Ghz | 0.5 Ghz | 1.5 Ghz | 3 Ghz | 5 Ghz | 10 Ghz | 15 Ghz | 40 Ghz | |
| Reflectivity (-dB) at normal incidence | - | - | - | - | 7 | 20 | 25 | 30 | 35 | 40 |
Frequently Asked Questions
What frequency range does the 2in absorber cover?
The 2in absorber provides effective absorption starting from 3 GHz, with -20 dB reflectivity at 3 GHz improving to -45 dB at 40 GHz.
How quickly does the 2in absorber ship?
The 2in absorber is in stock and ships within 1-2 business days from our California warehouse.
What are dB Absorber pyramidal absorbers made of?
Our absorbers are made of carbon and fire retardant chemical loaded polyurethane foam, volumetrically loaded for consistent electromagnetic properties throughout the material.
Are your absorbers fire rated?
Yes, all our absorbers are certified to NRL 8093 Tests 1, 2 & 3 fire safety standards. Optional test data is available for UL94 and DIN 4102-B2 compliance.
What is the operating temperature range?
Our absorbers operate from -85°F to 176°F (-50°C to +80°C), suitable for standard indoor testing environments.
