10 Count RF Absorber 18in, Pyramidal

*Special order. Send an email to info@dbabsorber.com to place an order
Sale
$1,850.00
You Save: (%)

Availability: *Special order. Send an email to info@dbabsorber.com to place an order

Coating:

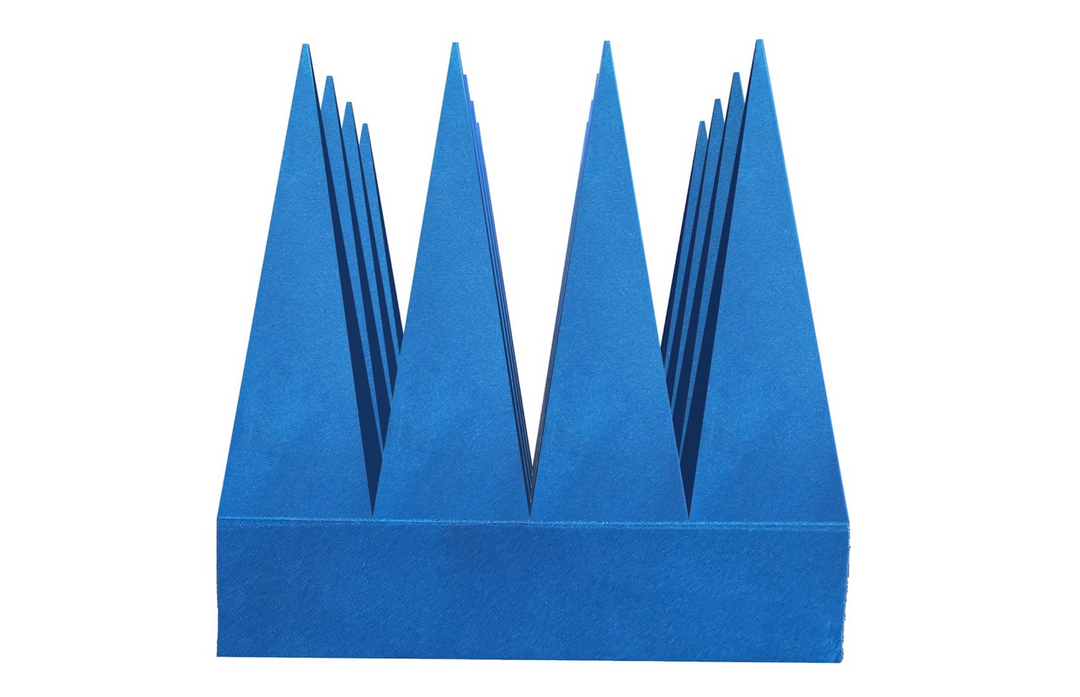

18in Pyramidal Polyurethane Foam Anechoic Chamber Absorber Tile

Composition: carbon and fire retardant chemical loaded polyurethane foam
Working Temperature: -85°F to 176°F (-50°C to +80°C)
Environment: Indoor Use
Fire Retardancy: Certified Independent Lab Test Data to NRL 8093 Tests 1, 2 & 3
Optional Test Data For UL94 and DIN 4102-B2
Power Typical Power Handling: 1kW/m²

*Special Order: 8-10 Weeks

Dimensions

A B C D E/F
Total Height Pyramid Base Pyramid Height Base Height Base Size #Pyramids
18in/457.2mm
standard
standard
standard
24x24in/ 610x610mm
16 per Absorber



Reflectivity

Normal frequency (GHz)
0.1 Ghz 0.2 Ghz 0.3 Ghz 0.5 Ghz 1 Ghz 3 Ghz 5 Ghz 10 Ghz 15 Ghz 40 Ghz
Reflectivity (-dB) at normal incidence - - 20 28
35
45
50
60
60
60
