10 Count RF Absorber 24in, Pyramidal

10 Count RF Absorber 24in, Pyramidal

$2,250.00
/
  • In stock, ready to ship
  • Backordered, shipping soon

Pickup currently unavailable at Carson

10 Count RF Absorber 24in, Pyramidal
Painted (Blue)
Carson

Pickup currently unavailable

24424 Main Street
Ste 603
Carson CA 90745
United States

+14154098517

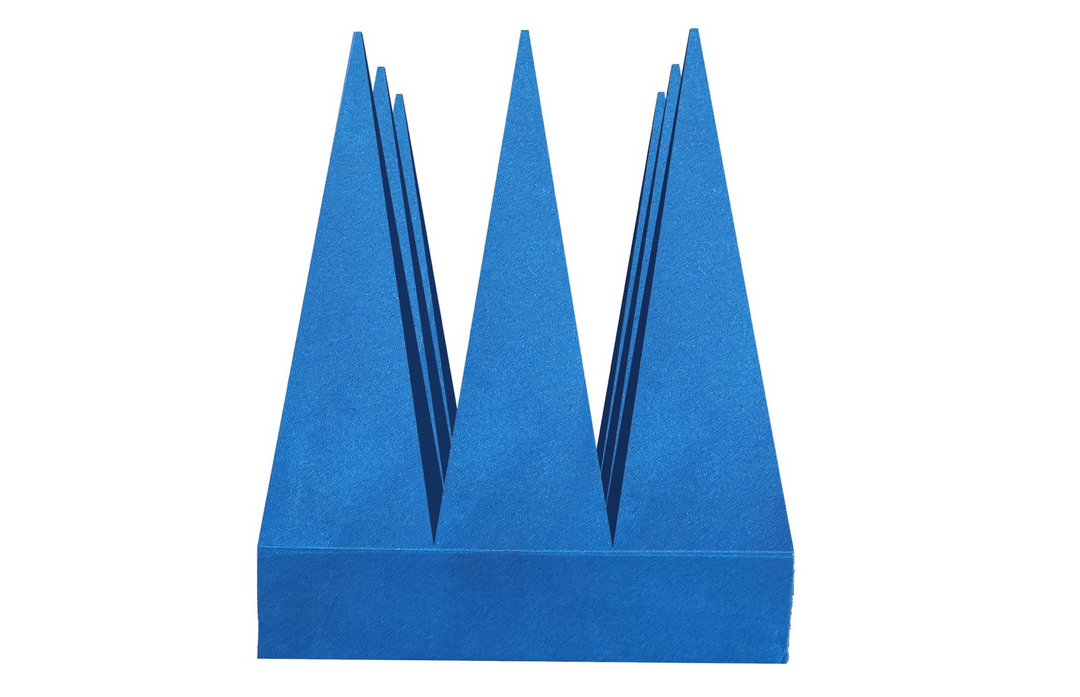

24in Pyramidal Polyurethane Foam Anechoic Chamber Absorber Tile

Composition: carbon and fire retardant chemical loaded polyurethane foam
Working Temperature: -85°F to 176°F (-50°C to +80°C)
Environment: Indoor Use
Fire Retardancy: Certified Independent Lab Test Data to NRL 8093 Tests 1, 2 & 3
Optional Test Data For UL94 and DIN 4102-B2
Power Typical Power Handling: 1kW/m²

*Special Order: 8-10 Weeks

Dimensions

A B C D E/F
Total Height Pyramid Base Pyramid Height Base Height Base Size #Pyramids
24in/609.6mm
 standard
 standard
 standard
 24x24in/ 610x610mm
 9 per Absorber



Reflectivity

Normal frequency (GHz)
0.1 Ghz 0.2 Ghz 0.3 Ghz 0.5 Ghz 1 Ghz 3 Ghz 5 Ghz 10 Ghz 15 Ghz 40 Ghz
Reflectivity (-dB) at normal incidence - 17 22
 30
 37
 45
 50
 60
 60
 60

Other Available Sizes
