10 Count RF Absorber 18in, Pyramidal
$1,850.00
You Save: (%)
Availability: *Special order. Send an email to info@dbabsorber.com to place an order

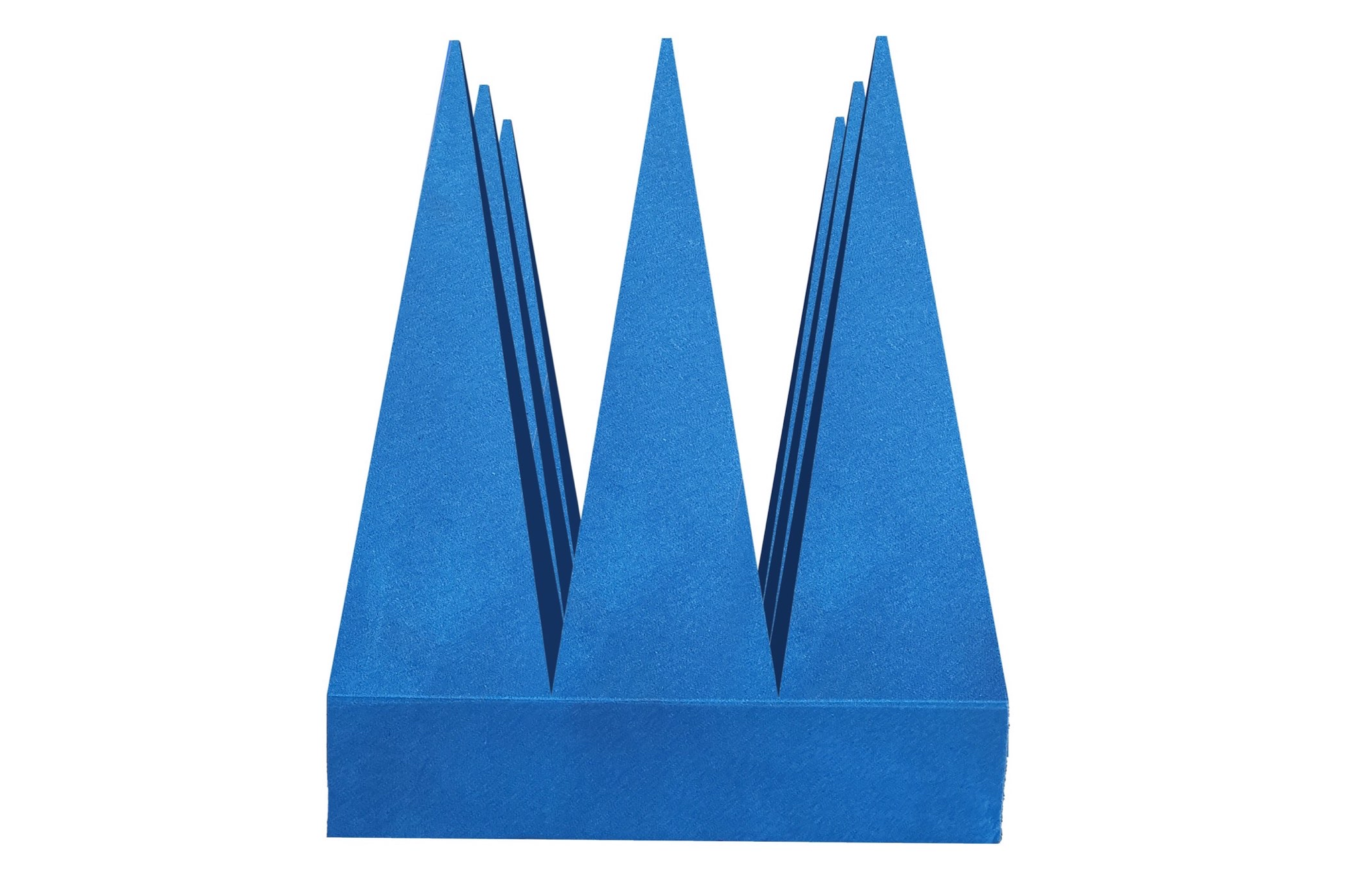

18in Pyramidal Polyurethane Foam Anechoic Chamber Absorber Tile
Composition: carbon and fire retardant chemical loaded polyurethane foam
Working Temperature: -85°F to 176°F (-50°C to +80°C)
Environment: Indoor Use
Fire Retardancy: Certified Independent Lab Test Data to NRL 8093 Tests 1, 2 & 3
Optional Test Data For UL94 and DIN 4102-B2
Power Typical Power Handling: 1kW/m²
*Special Order: 8-10 Weeks
Dimensions
| A | B | C | D | E/F | |
| Total Height | Pyramid Base | Pyramid Height | Base Height | Base Size | #Pyramids |
| 18in/457.2mm |
standard |
standard |
standard |
24x24in/ 610x610mm |
16 per Absorber |
Reflectivity
| Normal frequency (GHz) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 0.1 Ghz | 0.2 Ghz | 0.3 Ghz | 0.5 Ghz | 1 Ghz | 3 Ghz | 5 Ghz | 10 Ghz | 15 Ghz | 40 Ghz | |
| Reflectivity (-dB) at normal incidence | - | - | 20 | 28 |
35 |
45 |
50 |
60 |
60 |
60 |
